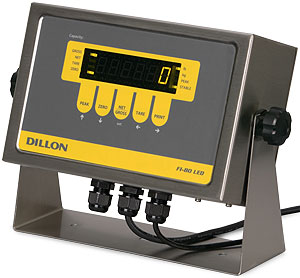

FI-80 Specifications
Enclosure: Heavy-duty stainless steel enclosure on stand. Outdoor use designed. (H x W x D) 7.5 x 10.5 x 3.2 in / 190 x 265 x 80 mm
Display: LCD: 0.8 inch / 20mm 7-segment, 6 digits with backlight.
LED: 0.56 inch / 14mm 7-segment, 6 digits.
Analog to digital conversion rate: 25 times per second
Display update rate: 8 times per second
Peak detection: 0.5 second events or longer
Power: LED: 110/220 VAC 50/60 Hz – 10 ft (3 m) cord
LCD: Internal rechargeable battery and 120VAC wall charger, 6 ft (2.5 m) cord
Approximate battery life (LCD only): 20 hrs per charge
Operating temperature: 14° to 104° F (-10° to 40°C )
Warranty: One year
Indicator & Dillon Load Cell System
Typical accuracy: + 0.2% of load cell capacity
Displayed resolution: Typically configured to 5,000 divisions
More Indicator Specifications
(relevant for non-factory connected load cells)
Load cell excitation: +5 VDC drives up to four 350-ohm load cells
Load cell signal: Single direction 0.2 mV/V to 3 mV/V range
Displayed resolution: Typically configured to 5,000 divisions. Can display up to 50,000 divisions
Capacity: Front-panel configurable for values from 1 to 199,999 lb
Span range: ±0.2 mV/V
Zero range: + 0.2% of load cell capacity
Typical accuracy: + 0.2% of load cell capacity
Linearity: Within 0.02% of full scale
Cable connection: Watertight feed-through to main board terminals
