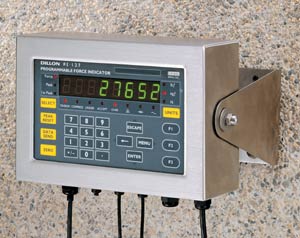

FI-127   Specifications

Display:
Eight digits, 0.8-inch high, green, seven-segment
LED with 8 decimal points
LED Annunciators:
Display: Force, Peak, 1st Peak, Tension, Compress
Default units of measure: lbf, kgf, N
Status: Motion, Center of Zero, Data Send
Configurable: Under, Accept, Over
Programmable selections:
Zero range, peak,first peak, data capture,
motion detection, 10-point linearization
Analog input range: ±0.2 to ±5 mV/V
Loadcell excitation: ± 5 VDC at 343 mA
Supports up to twelve 350-ohm loadcells
Analog to digital conversion rate: 60 times per second
Linearity adjustment:The instrument may be calibrated for up to six different load cells. Each loadcell may be calibrated at two to ten points, providing best fit linearization. 35 total calibration pints available.
Accuracy:
Linearity: ±0.005% of capacity
Span: ±5.0 ppm/°C (-40 to 60°C)
Repeatability: ±0.005% of capacity
Hysteresis: 0.005% of capacity
