Test Stands

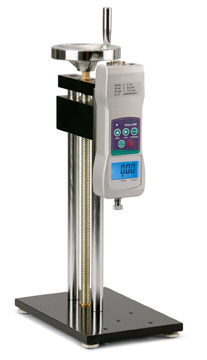

CT Test Stand

Model CT

500N/110lbf/50kgf
  • Ultra affordable
  • Improves testing consistency
  • Applies tension and compression loads to 500N/110lbf/50kgf
  • Accommodates Dillon and competitive force gauges

Specifications

Crosshead travel: 0.12in / 3mm per handle revolution

Maximum daylight and travel: 12.5in (318mm) (With force gauge, but without grips or fixtures)

Recommended maximum loads: 500N / 100lbf / 50kgf

Shipping weight: 18lb / 8kg

Warranty: One year parts and labor

Adjustable base plate: Accessory available

Download the PDF:
CT Brochure
CT Pricelist
